UR52 Industrial Cellular 3G 4G LTE FDD M2M RTU Router with GPS WiFi for Smart City

FOB Reference Price:Get Latest Price
$180.00 - $300.00 / Unit | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
Ursalink
Model Number:
UR52-U01X-G-W
Installation:
Desktop, wall or DIN rail mounting
Housing:
Metal
Fast Ethernet:
2 x 10/100 Mbps
Weight:
460 g (1.01lb)
Ingress Protection:
IP30
Dimensions:
132 x 103.8 x 45 mm (5.20 x 4.09 x 1.77 in)
Serial Port:
1xRS232 + 1xRS485 or 2xRS232 or 2xRS485
Power Input:
9 - 48 VDC
Dual-Band Wi-Fi:
IEEE 802.11a/b/g/n/ac
GPS Support:
Yes
Supply Ability
Supply Ability:
3000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard Package
Port
Xiamen
Product Description

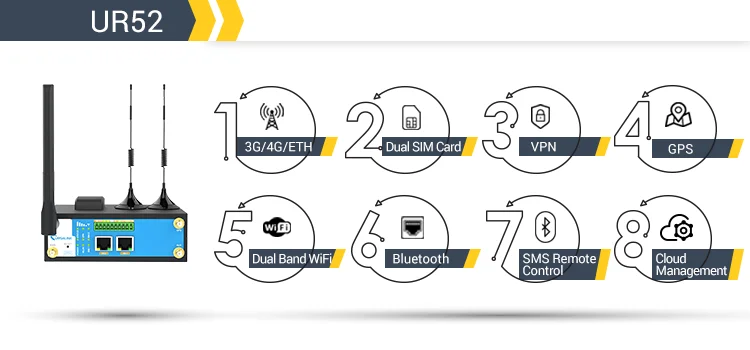

UR52 Industrial Cellular Router

UR52 industrial cellular router is a fully-pledged networking platform offering versatile wireless connectivity over 3G, 4G, Wi-Fi and Fast Ethernet. The strong points of UR52 lie in the multiple encryption tunnels, redundant connection between cellular and Wi-Fi, rich industrial networking protocols, and powerful software inside. The seamless and reliable connectivity contribute to its unmatched excellence and drives continuous growth for your businesses.

Highlights:

High Processing Speed: embeds 32-bit ARM Cortex-A7 processor, 128 MB DDR3 RAM
Flexible Modular Design:  Serial port, GPS, Wi-Fi, etc (AP+Client)
IoT Platform Readiness: connects to AWS, Azure, ThingWorx in minutes
Remote Management: features Ursalink DeviceHub Management Platform
Custom-Tailored Service: experienced OEM/ODM solution

Multiple Encryption Tunnels: complies with a wide range of VPN protocols

High-Speed Data Transmission: features fast Ethernet port

Device Management Platform

Ursalink DeviceHub is engineered to extend your network reach of remote equipment and allows you to perform further analysis, monitor all critical parameters of remote routers, perform configuration, upgrade firmware, analyze system log, create graphic reports and more.

UrsalinkVPN

The UrsalinkVPN acts as a secure termination point for all Ursalink routers and offers seamless communication originated by the customers to their machines. It is generally used in the industrial M2M communication sector. Through the web-based UrsalinkVPN portal, you can manage account, routers and devices, etc.

Specifications
UR51
UR52
UR55




Capabilities
CPU
528 MHz, 32-bit ARM Cortex-A7
Flash
128 MB
Memory
128 MB DDR3
Built-in
Watchdog, RTC
GPS
GPS + GLONASS
Micro SD
Supports micro SD card up to 128 GB





Interfaces
SIM Slots
2
Ethernet Ports (Mbps)
1 x 10/100
(Optional: PoE Output)
2 x 10/100
5 x 10/100
Serial Ports
1 x RS232 or
1 x RS485
1 x RS232 + 1 x RS485
or 2 x RS232 or 2 x RS485
Digital (I/O)
N/A
2 x DI + 2 x DO
Antenna Connectors
2 x Cellular Connectors
(Center Pin: SMA Female)
2 x Cellular Connectors
2 x Wi-Fi Connectors, 1 x GPS Connector
(Center Pin: SMA Female)







Network
Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIP v1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
AAA
Radius, TACACS+, LDAP, Local Authentication
Firewall
ACL/DMZ/Port Mapping/MAC Binding
Wi-Fi
IEEE 802.11 b/g/n/ac
Serial Port
Transparent ( TCP Client/Server, UDP), Modbus Master Modbus Gateway (Modbus RTU to Modbus TCP)
VPN
DMVPN/IPsec/OpenVPN/PPTP/L2TP/GRE
Reliability
VRRP, WAN Failover, Dual SIM Backup
Maintenance
Management
Web, CLI, SMS, Watchdog, On-Demand Dial up
Multilevel Authority
Multiple Levels of User Authority







Hardware
Power Input
9-48 VDC (48V power input is needed for 802.3af PoE output)
9-48 VDC
Power Consumption
Typical 1.8 W
(Max 2.7 W) in non-PoE mode
Typical 2.5 W
(Max 4.1 W)
Typical 2.8 W
(Max 5.0 W)
Ingress Protection
IP30
Housing & Weight
(Metal)
365 g (0.80lb)
460 g (1.01lb)
481 g (1.06lb)
Dimensions
100 x 96.1 x 30 mm
(3.94 x 3.78 x 1.18 in)
132 x 103.8 x 45 mm
(5.20 x 4.09 x 1.77 in)
Mounting
Desktop, Wall or DIN Rail Mounting






Others
Operating Temperature
-40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Relative Humidity
0% to 95% (Non-Condensing) at 25°C/77℉
Certifications
RoHS, CE, FCC
EMC
IEC 61000-4-2 Level 3
IEC 61000-4-3 Level 3
IEC 61000-4-4 Level 4
IEC 61000-4-5 Level 4
IEC 61000-4-6 Level 3
IEC 61000-4-8 Level 4
Detailed Images



Comprehensive Industrial Interface - Front


Fast Ethernet Port: 2 x 10/100 Mbps

Main Cellular Antenna & AUX Cellular Antenna

GPS: with high accuracy positioning

Dual-band Wi-Fi: complies with 802.11a/b/g/n/ac standard

Serial Port & I/O: 1 x RS232 + 1 x RS485 or 2 x RS232 or 2 x RS485





Comprehensive Industrial Interface - Back

Grounding Stud

Power Connector

SIM Card Slot




Package Contents

2 x Magnetic Mount Cellular Antennas
2 x Stubby Cellular Antennas (Optional)
2 x SIM Card Slots
1 x Power Adapter

and more....




No License Fee

Free to enjoy the all-inclusive features without any upfront cost.





3 Years Warranty Included

With 7x24 Real-Time Online Technical Support
